CONFORMAL COATING ABchimie526UV

ABchimie526UV is a permanent and transparent conformal coating. It cures thanks to the UV light and it is designed for the protection of PCBs which are subjected to harsh environments. This varnish benefits from the dual cure technology (UV/moisture) which allows crosslinking in the shadow areas.

APPLICATIONS

  • With brush
  • By selective deposit machine

Available in different versions:

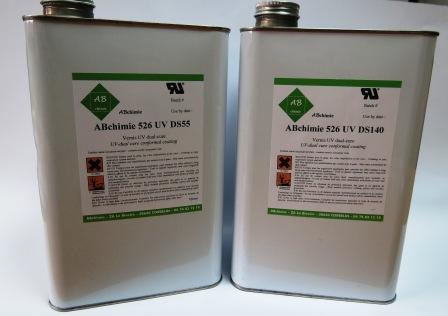

  • ABchimie 526UV DS55M, UV varnish (dual cure), viscosity of 55cSt at 25°C.
  • ABchimie 526UV DS140M,UV varnish (dual cure), viscosity of 140cSt at 25°C.
  • ABchimie 526UV-LED DS55, LED varnish (dual cure), viscosity of 55cSt at 25°C.
  • ABchimie 526UV-LED DS140, LED varnish (dual cure), viscosity of 140cSt at 25°C.

Available: in 5L, 25L, 200L

Cleaning solvent (non dry varnish) : SND; DNS

FEATURES

  • Ultra fast UV curing.
  • Polymerization of shadow areas with moisture.
  • VOC Free.
  • Excellent adhesion under harsh weather conditions.
  • Range temperature of – 55°C at + 150°C.
  • Heat-sealable varnish.
  • Mold resistance.
  • Excellent dielectric properties.
  • Reduced floor space compared to solvent-based products.
  • Speed process, increase productivity.
  • Low viscosity for use in selective coating machine (usable in head SC200, SC280, SC 300 and SC400).
  • Approval UL94-V0 (QMJU2- E308681) and CEI NF EN 61086.
  • Approval NF 16101/ 16102.

TECHNICAL DATA

Français:
English:

Polymerization UV, Economic and Ecological
